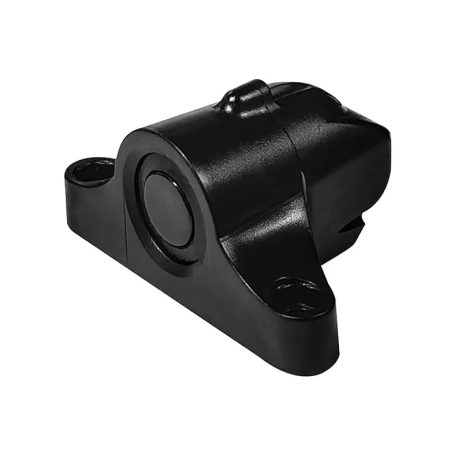

The DYP-A10ANYTW-V1.0 is a high-performance ultrasonic precision rangefinder designed for accurate distance measurements between 25 cm and 450 cm. It features a waterproof ultrasonic transducer, ensuring adaptability across various environments. The module offers two measurement modes—flat object and people detection—selectable via firmware updates. It supports multiple output interfaces, including UART Control, facilitating seamless integration with microcontrollers for automated applications. Its low power consumption, operating voltage range of 3.3V to 5.0V, and compact design make it suitable for applications such as robotic obstacle avoidance, proximity detection, and parking management systems.
Features:
- Distance Measurement: Measures distances from 25 cm to 450 cm with high precision.
- Measurement Modes: Offers flat object and people detection modes, selectable via firmware updates.
- High Accuracy: Provides millimeter-level precision with an accuracy defined as ±(1 + S * 0.5%), where S is the measuring distance.
- Automatic Temperature Compensation: Ensures stable performance across temperatures ranging from -15°C to 60°C.
- Multiple Output Interfaces: Supports UART Control, PWM Control, and Switch interfaces, with UART Control facilitating seamless integration with microcontrollers for automated applications.
- Low Power Consumption: Operates efficiently with an average current requirement of 10.0 mA and a controlled output static current of less than 10 µA.
- Operating Voltage: Compatible with a voltage range of 3.3V to 5.0V, suitable for various system integrations.
- Compact Design: Features a small form factor and lightweight build, facilitating easy integration into projects or products.
- High Stability: Maintains stable measurements in blind areas, effectively measuring the human upper body within 1.5 meters and flat objects up to 4.5 meters.
- IP67 Protection: Built with an IP67-rated waterproof enclosure, ensuring reliable operation in diverse environmental conditions.
Package Includes:
1 x DYP-A10ANYTW-V1.0 |High Performance Ultrasonic Precision Rangefinder | 25-450cm | UART Controlled
