KVM (https://pikvm.org/) is a very powerful and Open Source Software which allows for a remote connection via your Raspberry Pi to turn on/off or restart your computer, configure the UEFI/BIOS, and even reinstall the OS using the Virtual CD-ROM or Flash Drive. You can use your remote keyboard and mouse or KVM can simulate a keyboard, mouse, and a monitor, which are then presented in a web browser as if you were working on a remote system directly. It’s true hardware-level access with no dependency on any remote ports, protocols or services!
The KVM refers to Keyboard Video Mouse.

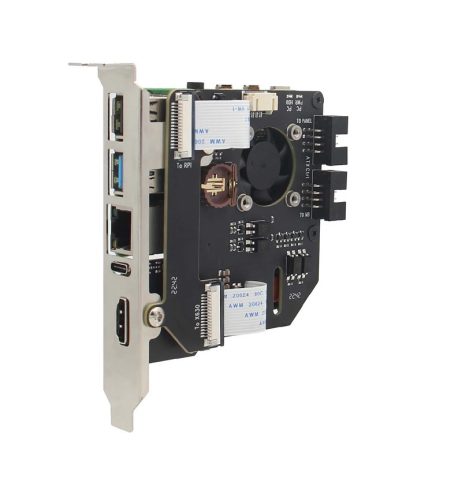

This KVM-A8 PCIe version kit is designed and based on Raspberry Pi 4 Model B. It is directly inserted into the computer case as a PCI card. It does not require additional cables and is more convenient to use.
The whole KVM-A8 PCIe version kit is composed of follow parts:
X630 HDMI to CSI-2 Module (for video capture)
X630-A8 V1.7 Expansion Board (for PoE, cooling, RTC, ATX power control etc)
Note: Raspberry Pi Board is Not Included.
Features:
- Designed especially for KVM ( Raspberry Pi 4-based KVM-Over-IP solution)
- Installs justs like any PCI card into a tower / desktop PC
- Compatible with the latest Raspberry Pi 4 Model B(Not support Raspberry Pi 3)
- Fully compatiblie with PiKVM OS(PiKVM V3 platform)
- Reliable remote network access to servers and computers
- HDMI Full HD capture based on the TC358743 chip （from X630)
- OTG Keyboard & mouse; Mass Storage Drive emulation
- Hardware Real Time Clock (RTC) with CR1220 coin battery socket
- Equipped with cooling fan on X630-A8 for heat dissipation of Raspberry Pi 4
- Equipped with photocoupler to protect RPi GPIO pins from computer and ESD spikes
- PoE Supported – Power over Ethernet for simplified installation, also supports for powering via USB-C of X630-A8
- Designed to use a single Ethernet cable for both data and power transmission （POE)
- Reserves the PH2.0-4P connector for I2C OLED display
Package Includes:
1 x X630-A8 V1.7 Expansion Board
1x X630-A8-CAB V1.1 Camera Adapter board
1 x FPC Cable (5cm length)
1 x ATX Control Cable (Length:52cm)
1 x Motherboard Internal USB 2.0 9-pin Female Header to TYPE-C USB OTG Cable (Length: 50cm)
1 x USB3.0 IDC to TYPE-C (Length: 45cm)
1 X HDMI cable (30cm length)
1 x Standard height PCIe Add-in Card I/O Bracket
1 x Mounting Screws Pack
