NLX1G74MUTCG

NLX1G74MUTCG-onsemi-1.65V~5.5V 200MHz 5ns@5V,50pF D-Type 1 1 1uA UQFN-8(1.6×1.6) Flip Flops ROHS

Availability:

In stock
SKU: R253916
Add to Wishlist
  1. MPN: NLX1G74MUTCG
  2. Brand: onsemi
  3. MOQ Reel: 3000/Full Reel
  4. Packaging Type: Cut Tape

For bulk orders or B2B inquiries, email us: [email protected]

₹ 48.00 (Incl. GST)

In stock

Purchase this product now and earn 1 Robu Point!
Bulk Order
Have a Bulk Order?
Click Here
Need Support
Need Support?
Click Here
Free Delivery above ₹999
Free Delivery
above ₹999
1 Year Warranty
1 Year Warranty
Cash On delivery
Cash on Delivery*
Didn’t find what you are looking for?

Brand: ONSEMI
Category: Logic IC

NLX1G74MUTCG-onsemi-1.65V~5.5V 200MHz 5ns@5V,50pF D-Type 1 1 1uA UQFN-8(1.6×1.6) Flip Flops ROHS.

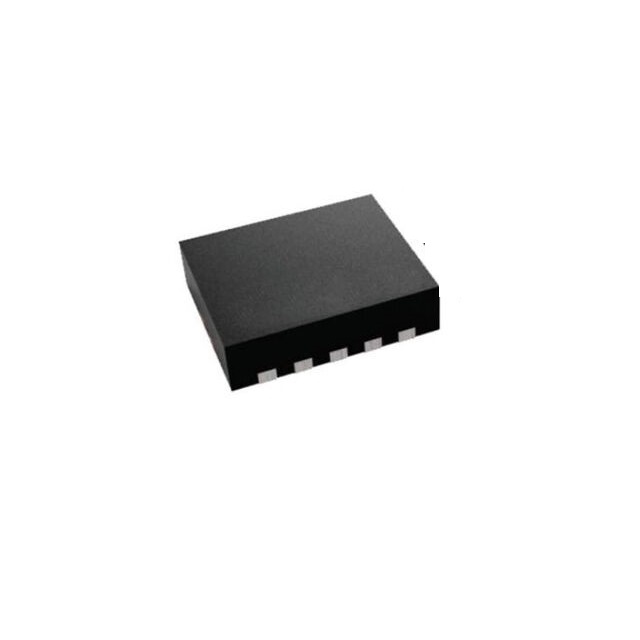

Note: Images for reference only.

Specifications:

Manufacturer: onsemi
Package: UQFN-8(1.6×1.6)
Voltage – Supply: 1.65V~5.5V
Operating Temperature: -40℃~+85℃
Clock Frequency: 200MHz
Propagation Delay: 5ns@5V,50pF
Function: Set and Reset
Current – Output High(IOH): 32mA
Type: D-Type
Current – Output Low(IOL): 32mA
Number of Bits per Element: 1
Number of Elements: 1
Input Capacitance: 7pF
Quiescent Current: 1uA
Output Type: Complementary
Trigger Type: Rising Edge

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x NLX1G74MUTCG-onsemi-1.65V~5.5V 200MHz 5ns@5V,50pF D-Type 1 1 1uA UQFN-8(1.6×1.6) Flip Flops ROHS

SKU: R253916 Category:
1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
