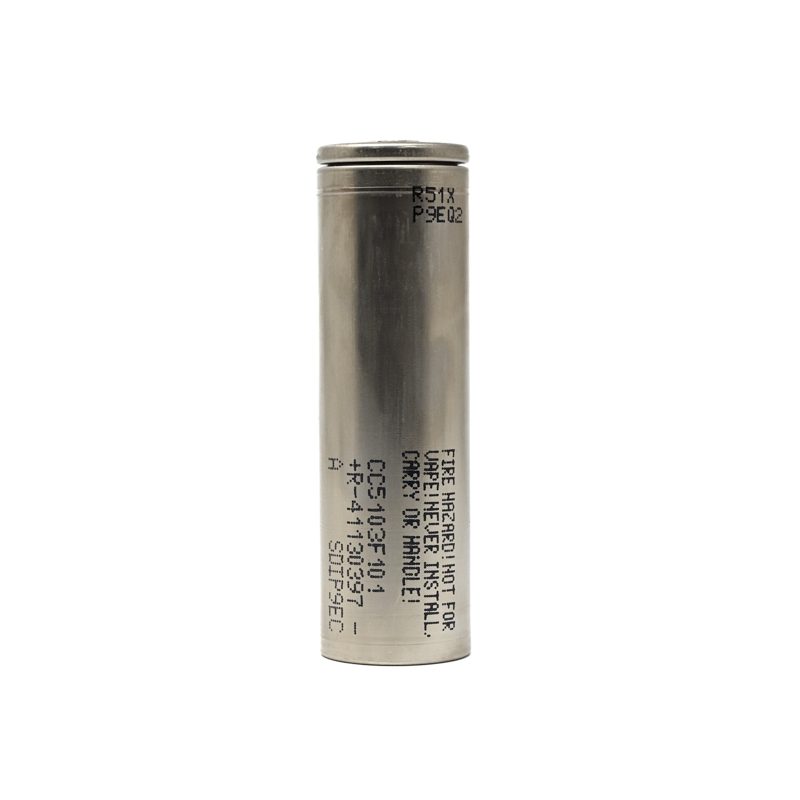

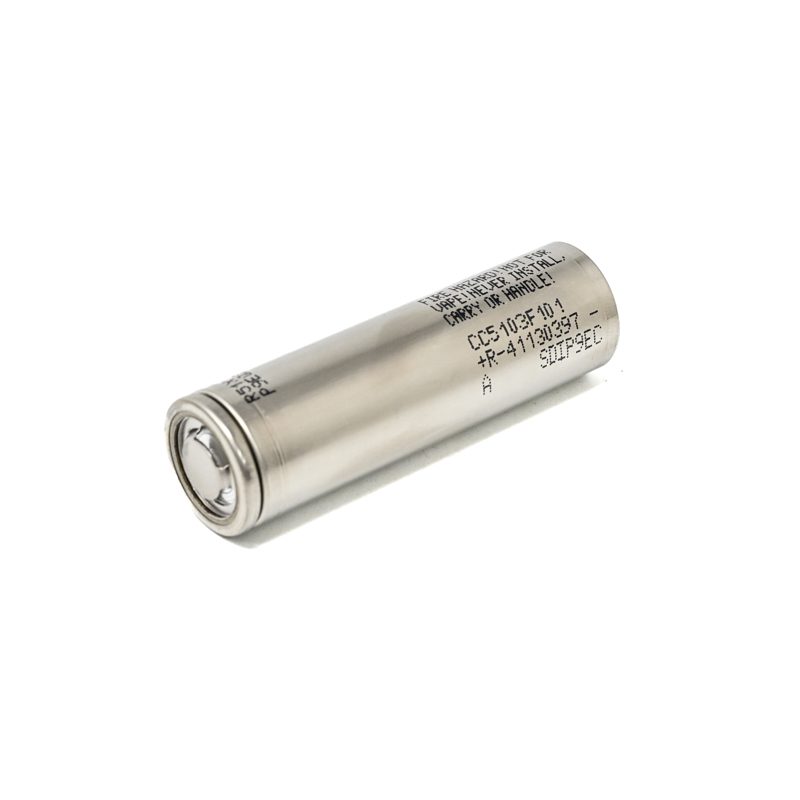

The Samsung SDI CC5103F101 (Version A) is a high-performance rechargeable lithium-ion cell designed for long-lasting energy storage and efficient power delivery. With a nominal capacity of 5,000mAh (typical 5,100mAh) and a nominal voltage of 3.65V, this cell ensures reliable performance across a wide range of applications. It features a maximum charge voltage of 4.2V (4.15V for cycle life) and supports a charge current of up to 5,000mA. The INR21700-51X cell provides a maximum discharge current of 5,000mA, ensuring that power is available when needed. The CC5103F101 boasts an impressive cycle life of 2,000 cycles, maintaining over 70% of its initial capacity at room temperature. Weighing only 72g with a height of 70.75mm and a diameter of 21.25mm, it is compact and efficient. The INR21700-51X cell operates within a broad temperature range, from 0°C to 45°C during charging and from -20°C to 60°C during discharge, offering excellent reliability in diverse conditions.
Note: These Li-ion cylindrical cells are unsleeved, with the cell body serving as the negative terminal and the top as the positive terminal. Improper insulation may result in a short circuit.
Features:
- Nominal Capacity: 5,000mAh (minimum), 5,100mAh (typical)
- Nominal Voltage: 3.65V
- Max Charge Voltage: 4.2V (4.15V for cycle life)
- Max Charge Current: 5,000mA
- Max Discharge Current: 5,000mA
- Cycle Life: 2,000 cycles with ≥70% capacity retention at RT
- Operating Temperature: Charge: 0°C to 45°C, Discharge: -20°C to 60°C
- Charging Method: CC-CV (constant current with constant voltage)
- Discharge Cut-off Voltage: 2.5V (3.0V for cycle life)
- Initial Internal Impedance: ≤ 18.0mΩ
Package Includes:
1 x SAMSUNG INR21700-51X 3.6V 5100mAh 2C LI-ION BATTERY.
