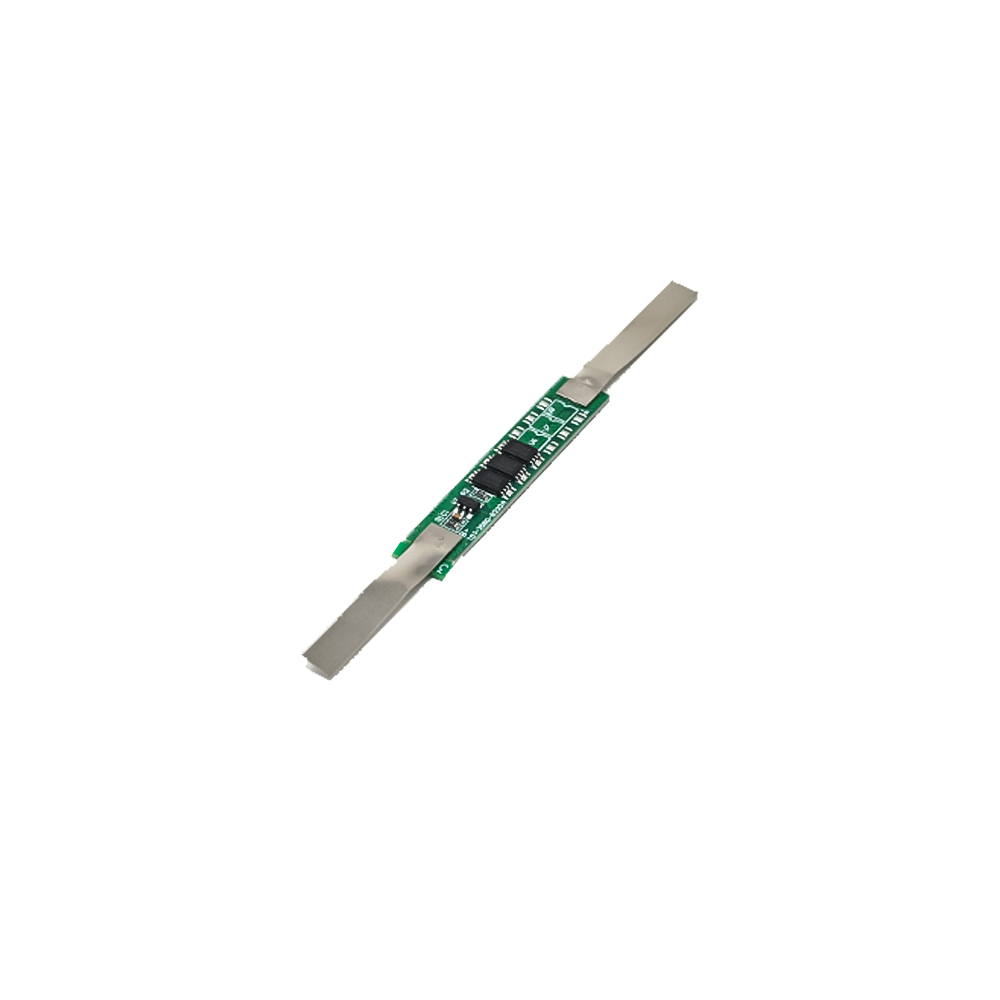

The TDT-3580 1S 5A Battery Management System (BMS) from Shenzhen Tuodatong Electronics is engineered for reliable protection and smart control of single-cell Li-ion NMC batteries. Designed with precision and efficiency in mind, this compact BMS module supports a maximum continuous charge/discharge of 5A. Built using high-quality DW01A IC and 8205 MOSFET, it ensures overcharge, over-discharge, short-circuit, and overcurrent protection. Its double-layer PCB with RoHS compliance and green solder coating ensures long-term durability and eco-friendliness. With strict quality controls and ESD resistance, this BMS offers high reliability for consumer electronics, IoT devices, and battery-powered tools. Its ultra-thin 2.2mm profile makes it ideal for compact battery packs.
Features:
- Overcharge Protection: Trigger at 4.28V ±0.05V with automatic recovery at 4.08V ±0.1V.
- Over-Discharge Protection: Activates at 2.4V ±0.1V and recovers at 3.00V ±0.1V.
- Overcurrent Protection: Rated for 10–15A with a fast reaction time of 10–20 ms.
- Short-Circuit Protection: Engages in 50–300 μs and resets upon load disconnection.
- Max Continuous Current: 5A charge/discharge suitable for moderate load applications.
- Low Self-Consumption: Max static current ≤ 8 μA ensures energy savings.
Package Includes:
1 x TDT Li-ion NMC 1S 3.6V 5A Battery Management System
