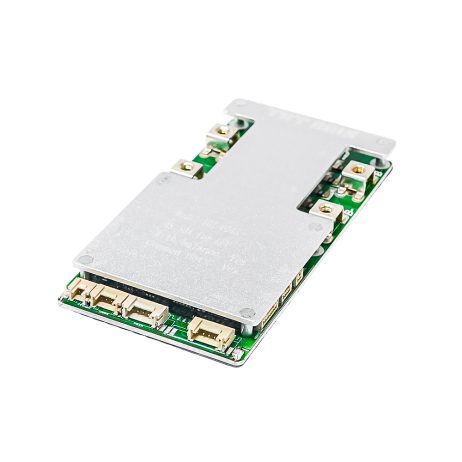

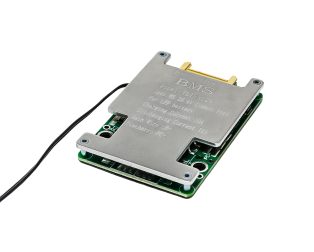

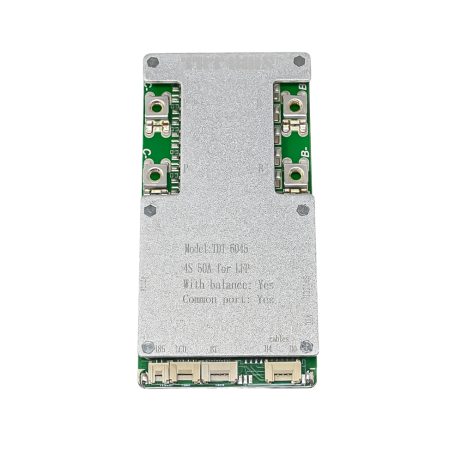

The TDT-6064-4S-50A Smart Battery Management System is designed for 4S 12.8V LiFePO4 battery packs, offering robust and intelligent protection for high-performance applications. This BMS supports up to 50A continuous current and includes advanced features like temperature protection, passive balancing, and low power consumption. It’s ideal for e-bikes, solar lighting, power tools, and portable energy storage systems. With integrated ICs and precision voltage/current monitoring, it ensures both safety and efficiency. The BMS comes with built-in short-circuit, overcharge, over-discharge, and over-current protections. Easy to wire and activate with an included low-voltage switch, this compact board is made for reliability in diverse environments.
Features:
- Supports 4S LiFePO4 packs (12.8 V)
- 50A continuous charge/discharge current
- Passive balancing at 50 mA for extended pack life
- Dual temperature monitoring (battery & MOS)
- Built-in low-voltage on/off switch control
- Advanced over/under voltage, current, temperature protection
- Short-circuit auto recovery after 32s delay

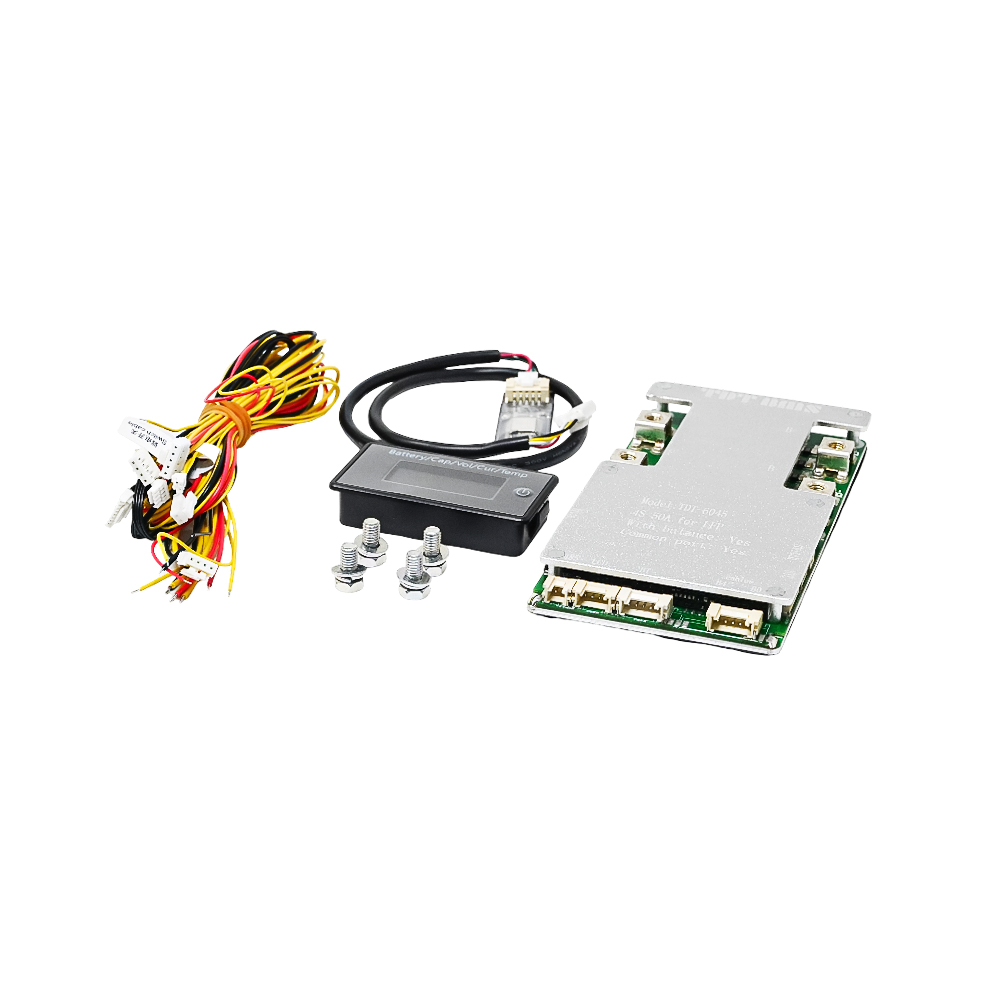

Package Includes:
1 x TDT LiFePO4 LFP 4S 12.8V 50A Smart Battery Management System
1 x connector cable
4 x Screws
1 x Battery Meter
1 x TDT Bluetooth
