TDT LiFePO4 LFP 8S 25.6V 10A Battery Management System

This TDT LiFePO4 LFP 8S 25.6V 10A compact and reliable 8-series (25.6 V) LiFePO₄ battery management system (BMS) from TDT provides a robust solution tailored for mid-sized e-bike packs. With a steady 10 A discharge capacity, it’s ideal for daily commuters and light cargo applications. The 60×35×10 mm module supports parallel battery connections, ensuring seamless scalability. Its hardware-based protection swiftly handles overcharge, overdischarge, overcurrent, short-circuit, and temperature events. Passive balancing technology keeps all cells evenly charged, extending lifespan. Featuring ultra-low standby current and a reserved discharge control switch, this BMS is efficient and easy to integrate.

Features:

1. Supports 8 LiFePO₄ cells in series (25.6 V nominal)
2. Continuous 10 A discharge rating
3. Overcharge, overdischarge, overcurrent, short-circuit, and thermal protection
4. Hardware-level fast response protection
5. Built-in passive (resistive) balancing
6. Ultra-low quiescent current draw
7. Parallel connection capable for larger packs

Package Includes:

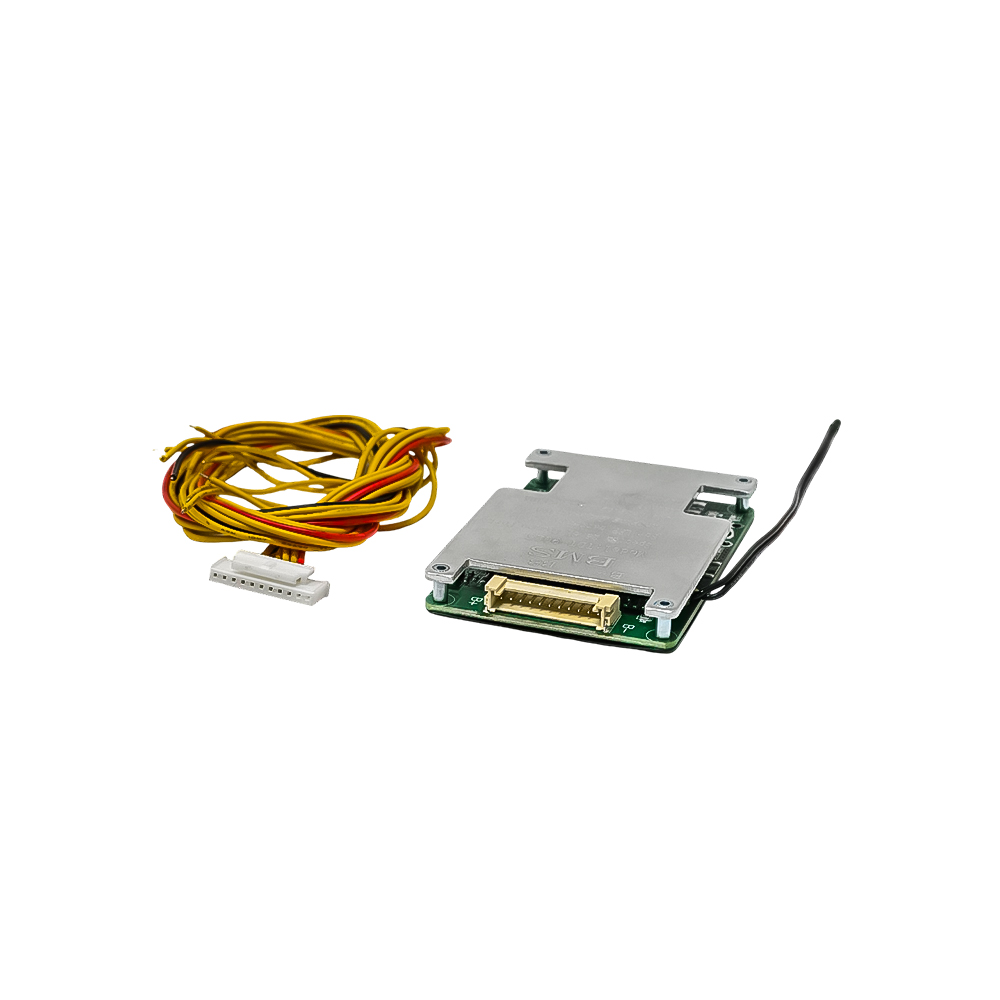

1 x TDT LiFePO4 LFP 8S 25.6V 10A Battery Management System

1 x Connector Cable
