XUNPU 20240514 XUNPU WAFER PH2 0 4PZZ H62 C22390439 back

WAFER-PH2.0-4PZZ-GH-XUNPU-1x4P PH 4P Tin 4 -25℃~+85℃ 2A 1 2mm Brass Direct Insert Plugin,P=2mm Wire To Board Connector ROHS

Availability:

In stock
SKU: R218969
Add to Wishlist
  1. MPN: WAFER-PH2.0-4PZZ-GH
  2. Brand: XUNPU
  3. MOQ Reel: 2000/Full Bag
  4. Packaging Type: Bag

For bulk orders or B2B inquiries, email us: [email protected]

₹ 2.00 (Incl. GST)

In stock

Purchase this product now and earn 1 Robu Point!
Bulk Order
Have a Bulk Order?
Click Here
Need Support
Need Support?
Click Here
Free Delivery above ₹999
Free Delivery
above ₹999
1 Year Warranty
1 Year Warranty
Cash On delivery
Cash on Delivery*
Didn’t find what you are looking for?

Brand: XUNPU
Category: Male Pin Connector

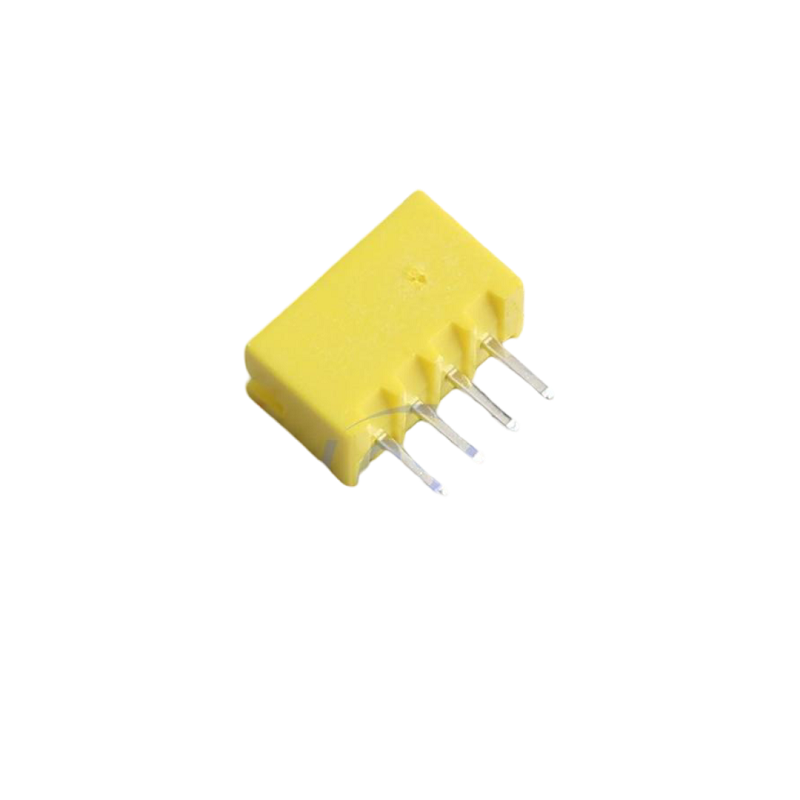

WAFER-PH2.0-4PZZ-GH-XUNPU-1x4P PH 4P Tin 4 -25℃~+85℃ 2A 1 2mm Brass Direct Insert Plugin,P=2mm Wire To Board Connector ROHS.

Note: Images for reference only.

Specifications:

Manufacturer: XUNPU
Package: Plugin,P=2mm
Y-Width of Bottom Edge on Board: 4.7mm
Pins Structure: 1x4P
Reference Series: PH
Number of Pins: 4P
Contact Plating: Tin
Row Spacing: –
Number of PINs Per Row: 4
Operating Temperature: -25℃~+85℃
Current Rating: 2A
Plastic Material: PA66
Color: White
Number of Rows: 1
Supplementary Features: –
Flame Retardant Rating: UL94V-0
Pitch: 2mm
Voltage Rating: 250V
Contact Material: Brass
X-Length of Bottom Edge on Board (Spacing Line): 10mm
Z-Height of the Board: 6.05mm
Mounting Type: Straight

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x WAFER-PH2.0-4PZZ-GH-XUNPU-1x4P PH 4P Tin 4 -25℃~+85℃ 2A 1 2mm Brass Direct Insert Plugin,P=2mm Wire To Board Connector ROHS

SKU: R218969 Category:
1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “WAFER-PH2.0-4PZZ-GH-XUNPU-1x4P PH 4P Tin 4 -25℃~+85℃ 2A 1 2mm Brass Direct Insert Plugin,P=2mm Wire To Board Connector ROHS”

There are no reviews yet.

Datasheet

DOWNLOAD

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Only registered users are eligible to enter questions
Country Of Origin: China
