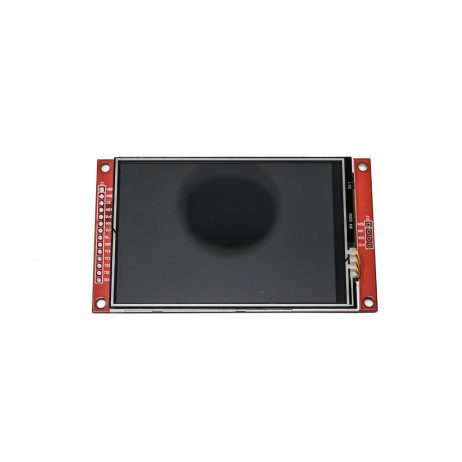

3.5 Inch SPI 50pin TFT LCD Touch Module ILI9488 Driver 480X320 Color Display
3.5 Inch SPI 50pin TFT LCD Touch Module ILI9488 Driver 480X320 Color Display
3.5 Inch SPI 50pin TFT LCD Touch Module ILI9488 Driver 480X320 Color Display
3.5 Inch SPI 50pin TFT LCD Touch Module ILI9488 Driver 480X320 Color Display
3.5 Inch SPI 50pin TFT LCD Touch Module ILI9488 Driver 480X320 Color Display
3.5 Inch SPI 50pin TFT LCD Touch Module ILI9488 Driver 480X320 Color Display

3.5 Inch SPI 50pin TFT LCD Touch Module ILI9488 Driver 480X320 Color Display

Availability:

Out of stock
SKU: R199598
Add to Wishlist
  1. Model: ILI9488 3.5 Inch TFT LCD
  2. Resolution: 480×320, 65K colors
  3. Interface: 4-wire SPI
  4. Temp Range: -20℃ to 60℃
  5. Power: 3.3V to 5V
  6. Size: 48.96 x 73.44 mm active area

For bulk orders or B2B inquiries, email us: [email protected]

₹ 1,236.00 (Incl. GST)

Out of stock

Bulk Order
Have a Bulk Order?
Click Here
Need Support
Need Support?
Click Here
Free Delivery above ₹999
Free Delivery
above ₹999
1 Year Warranty
6 Months Warranty
Cash On delivery
Cash on Delivery*
Didn’t find what you are looking for?

You must register to use the waitlist feature. Please login or create an account
Brand: Generic
Category: TFT LCD Displays

The 3.5 Inch SPI TFT LCD Touch Module with the ILI9488 driver is a high-quality display designed for use in a variety of embedded systems and DIY projects. With a 480×320 resolution and support for 65K colors, this module provides vibrant, high-definition visuals, making it perfect for graphical user interfaces, displays, and touch-based applications.

Feature:

  1. Driver IC: ILI9488, 16.7M colors, single-chip SoC for TFT touch displays.
  2. Display Size: 3.5 inches with 480×320 resolution for clear visuals.
  3. Color Support: 65K colors for vibrant and rich displays.
  4. Interface: 4-wire SPI for easy integration with minimal IO.

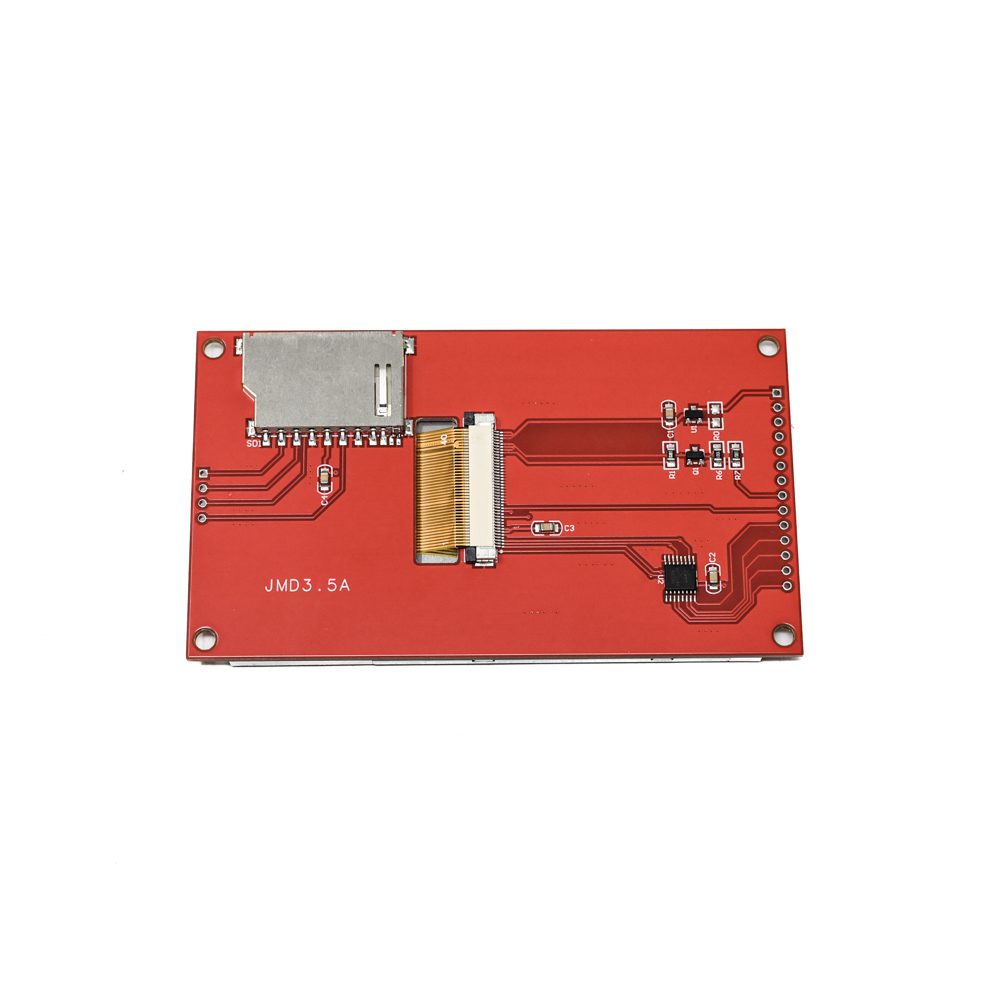

  5. SD Card Slot: Allows easy expansion for storage.
  6. Temperature Range: Operates between -20℃ to 60℃, suitable for various environments.
  7. Power Supply: VCC 3.3V to 5V, logic IO at 3.3V TTL.
  8. Compact Size: Active area of 48.96 x 73.44 mm, module size of 56.34 x 98 mm.

Package Includes:

1 x 3.5 Inch SPI 50pin TFT LCD Touch Module ILI9488 Driver 480X320 Color Display

SKU: R199598 Category:
Model Type:

Display
Touch Type

Resistive
Display Resolution:

320 × 480
Color Depth

262K
Display Type

TN
Screen Display

TFT-LCD Screen
Display Driver

ILI9488
Power Supply(V)

DC5V-2A
Buttons

BOOT Button and Reset Button
Active Area (mm):

48.96*73.44mm(W*H)
Shipping Weight 0.2 kg
Shipping Dimensions 15 × 10 × 7 cm
6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “3.5 Inch SPI 50pin TFT LCD Touch Module ILI9488 Driver 480X320 Color Display”

There are no reviews yet.

Questions and answers of the customers

    do you have enclosures where we can fit this LCD?
  1. 0 votes
    Q do you have enclosures where we can fit this LCD? answer now
    Asked by kvshetye on April 1, 2025 8:23 am
    A No we do not provide dedicated enclosures for all ... Read more
Only registered users are eligible to enter questions
Country Of Origin: China
