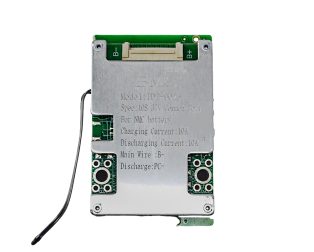

TDT Li-ion NMC 6S 22.2V 20A Battery Management System

Availability:

In stock
SKU: R222392
Add to Wishlist
  1. 20A max continuous charge/discharge current
  2. Reliable protection IC (HY2113FB2B) & powerful MOSFETs
  3. High-precision voltage detection & fast response times
  4. RoHS-compliant PCB, robust for industrial use

For bulk orders or B2B inquiries, email us: [email protected]

₹ 659.00 (Incl. GST)

In stock

Purchase this product now and earn 7 Robu Points!
Bulk Order
Have a Bulk Order?
Click Here
Need Support
Need Support?
Click Here
Free Delivery above ₹999
Free Delivery
above ₹999
1 Year Warranty
6 Months Warranty
Cash On delivery
Cash on Delivery*
Didn’t find what you are looking for?

Brand: TDT
Category: TDT Li-ion Hardware BMS

The TDT-8389-6S-20A Battery Management System (BMS) is a compact and efficient solution designed for 6-series lithium-ion NMC battery packs (22.2V nominal). this BMS ensures reliable protection and management of your battery system. Built with premium components like the HY2113FB2B IC and 4080E MOSFET, it offers protection from overcharge, over-discharge, overcurrent, and short circuits. The module is optimized for up to 20A continuous current and supports 0V charging. Featuring a compact PCB with RoHS-compliant double-layer green oil coating, it’s ideal for electric tools, e-bikes, and portable energy storage systems. Designed for safety, performance, and long life—this BMS guarantees efficient and safe energy control.

Features:

  1. Supports 6S Li-ion/NMC battery packs (22.2V nominal)
  2. Overcharge protection at 4.25±0.05V per cell
  3. Over-discharge protection at 2.5±0.1V per cell
  4. Overcurrent protection (60A–80A range)
  5. Short circuit detection within 150~350 μs
  6. Temperature protection at 75±10℃ for charge/discharge
  7. Supports 0V charging and auto-recovery

Package Includes:

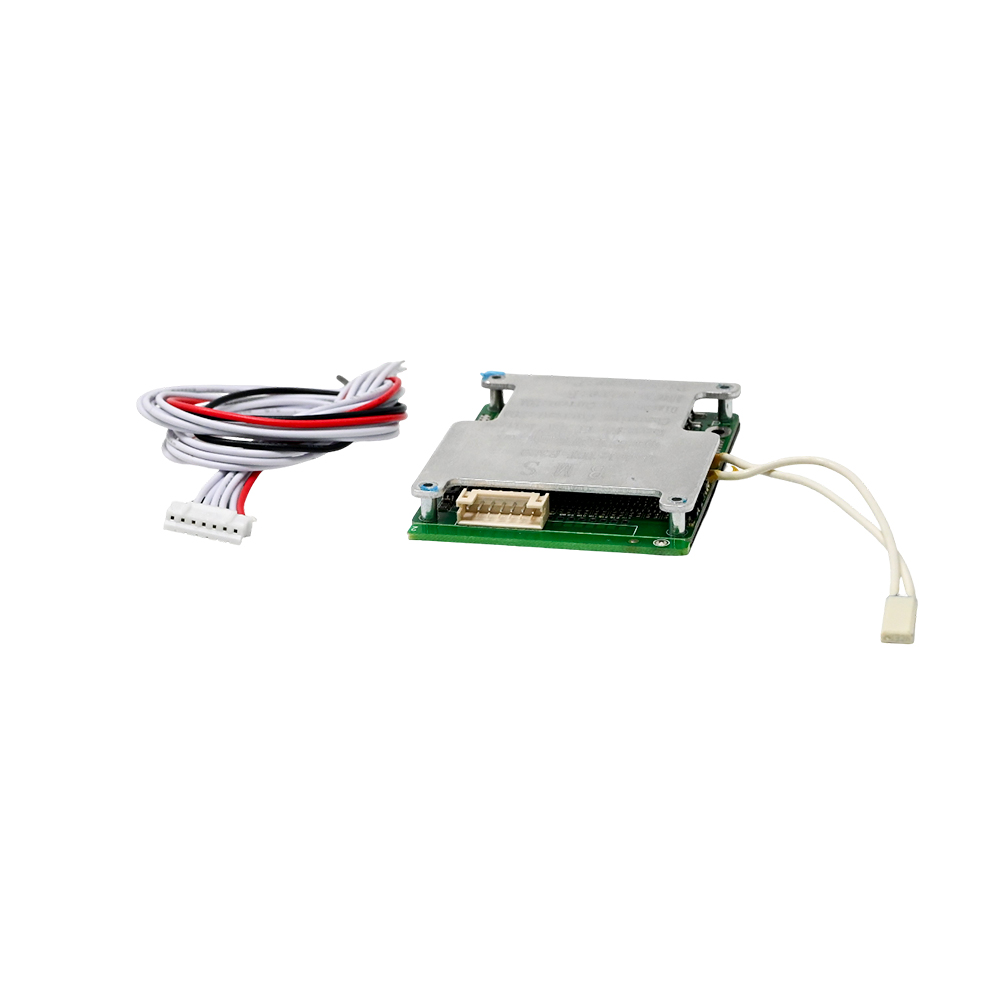

1 x TDT Li-ion NMC 6S 22.2V 20A Battery Management System

1 x Connector Cable

SKU: R222392 Category:
Item Type:

Battery Management System
Voltage Rating (V):

22.2
Battery Cell Composition:

Li-ion NMC
Current Rating (A):

20
Model Type:

6S
Battery Type

Li-Ion
Length (mm):

70
Width (mm):

55
Height (mm):

10
Weight (g):

45
Shipping Weight 0.051 kg
Shipping Dimensions 16 × 10 × 2 cm
6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “TDT Li-ion NMC 6S 22.2V 20A Battery Management System”

There are no reviews yet.

Datasheet

DOWNLOAD

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Only registered users are eligible to enter questions
Country Of Origin: China
