EasyMech Motor Coupling Hub (Big)

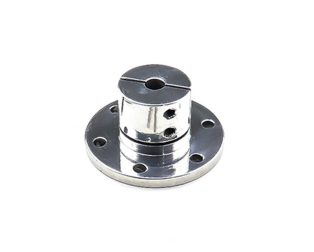

EasyMech ID-10mm Motor Coupling Hub (Big)

Availability: In stock
SKU: 9175

QUICK OVERVIEW

  1. Material: Mild Steel.
  2. Outside diameter: 59 mm.
  3. Inside diameter: 10 mm.
  4. PCD: 47.5 mm.
  5. Dia of Holes: 5.2 mm x 6 nos.
  6. Weight: 120 gm.

 472.00

(inc GST)

₹ 400 (+18% GST extra)

In stock

Purchase this product now and earn 5 Robu Points!
Brand: EasyMech

If you are about to couple OmniMecanum or other Heavy Duty wheels with the motor!!! Don’t wait, and get this EasyMech ID-10mm Motor Coupling Hub (Big).

The design is tested for high power robotic application and then made available to our customers. We assure you that this is good to go pack from EasyMech!!!!

This EasyMech ID-10mm Motor Coupling Hub (Big) connects a motor having shaft diameter of 10mm to a wheel which has PCD(pitch circle diameter) of 47.5mm.

They are having a high-quality hardened Mild Steel body which makes them more sturdy and durable than similar size aluminum coupling. Use of MS material makes them much heavy and increases the strength of coupling. These rigid couplings will keep backlash to a minimum since the coupling is one single piece.

The EasyMech is a brand of Robu.in which designs, produces and supplies the different type of hubs or couplings, It also accepts the custom design suggestions from the customers starting from low quantity orders.

Compatible Motors having shaft diameter of 10mm,

Tauren Planetary Gear DC motor

IG45 Planetary Geared DC Motor

Compatible Wheels having PCD of 47.5mm,

All Omni wheels(except 100mm aluminum), Mecanum wheelsModified HD wheels.


Features :

  1. Quality assured branded couplings.
  2. Equips high-quality MS.
  3. Provides good hold of Motor Shaft.
  4. Ensure safe operation of your robot.

Package Includes :

1 x EasyMech ID-10mm Motor Coupling Hub(Big)

1 x Allen Grub(M4).




Please do read our following article about EasyMech,

What is EasyMech?

Material

Mild Steel

Outer Diameter (OD)(mm)

59 mm

Inner Diameter (ID) (mm)

10

Pitch Circle Diameter(mm)

47.5

Motor Mounting Hole Dia. (mm)

5.2mm x 6 No.

Length (mm)

59

Weight(gm)

120

Shipment Weight

0.205 kg

Shipment Dimensions

7 x 7 x 3 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
