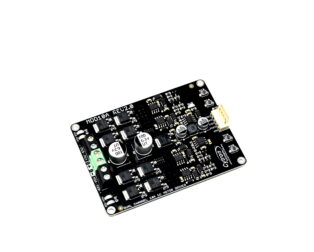

Refurbished – Cytron MDD10A Dual Channel Enhanced 10Amp DC Motor Driver 30A Peak

This is Refurbished – Cytron MDD10A Dual Channel Enhanced 10Amp DC Motor Driver 30A Peak

Below is the link If you want a brand new  https://robu.in/product/dual-channel-enhanced-13amp-dc-motor-driver-30a-peak/

Condition : This driver smoothly controls Motor 1 for forward and reverse movements using the M1A and M1B buttons. However, it doesn’t acknowledge manual inputs from the Motor 2 (M2A and M2B) buttons. In addition, both channels smoothly communicate with controller signals, making it simple to operate this driver with controllers like Arduino, Raspberry Pi, etc.

This Cytron Dual Channel Enhanced 10Amp DC Motor Driver 30A Peak MDD10A  is the dual-channel version which is designed to drive 2 brushed DC motor with high current up to 13A continuously. Like MD10C, MDD10A also supports locked-antiphase and sign-magnitude PWM signal.

It is using full solid-state components that result in faster response time and eliminate the wear and tear of the mechanical relay.

Note:

1. MDD10A shipped in Rev2.0 which Vmotor supports up to 30VDC.

2. Please use the battery when driving an inductive load such as DC brush motor. Due to the protection circuit of the most Power supply (switching), it will shut down when regenerative current from the motor is detected.

Features:

1. Bi-directional control of 2 brushed DC motor.
2. Support motor voltage ranges from 5V to 25V.
3. Maximum current up to 10A continuous and 30A peak (10 seconds) for each channel.
4. Solid-state components provide faster response time and eliminate the wear and tear of the mechanical relay.
5. Fully NMOS H-Bridge for better efficiency and no heat sink is required.
6. Speed control PWM frequency up to 20KHz. Support both locked-antiphase and sign-magnitude PWM operation.
7. 2 activation buttons for fast test on each channel.

Package Includes:

1 x Cytron MDD10A Dual Channel Enhanced 10Amp DC Motor Driver 30A Peak

Useful link:

Arduino Library
